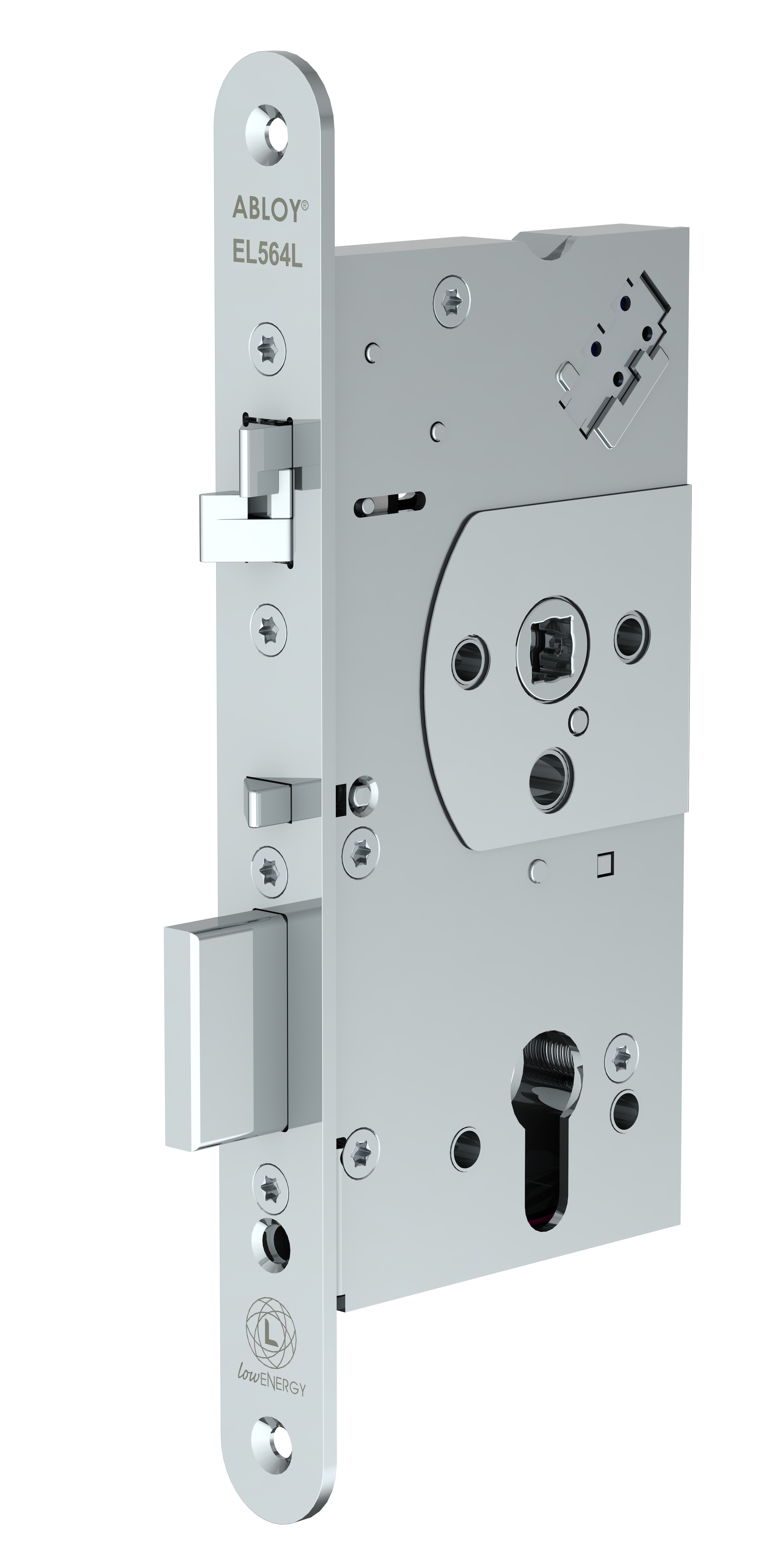

EL564L is the low energy version of EL564 which means all of the fittings and accessories may be used with both. The lock case has an operating voltage between 3,6 - 27,6 VDC. This means that it can be operated by battery powered systems. Handle controlled locks are best suited in medium traffic doors. The lock can be switched between fail-locked and fail-unlocked states. The locks can be electrically controlled by access control system or by a remote control system such as timer, keypad or push button. The locks can be used fire rated doors. Only the outside handle is electrically controlled. Mechanical opening by cylinder or thumbturn is always possible. Recommended to be used in interior doors of business premises, public buildings, hospitals, educational premises etc. Indications to EAC. EL564 is French model.
Mortise
Single point
Europrofile
