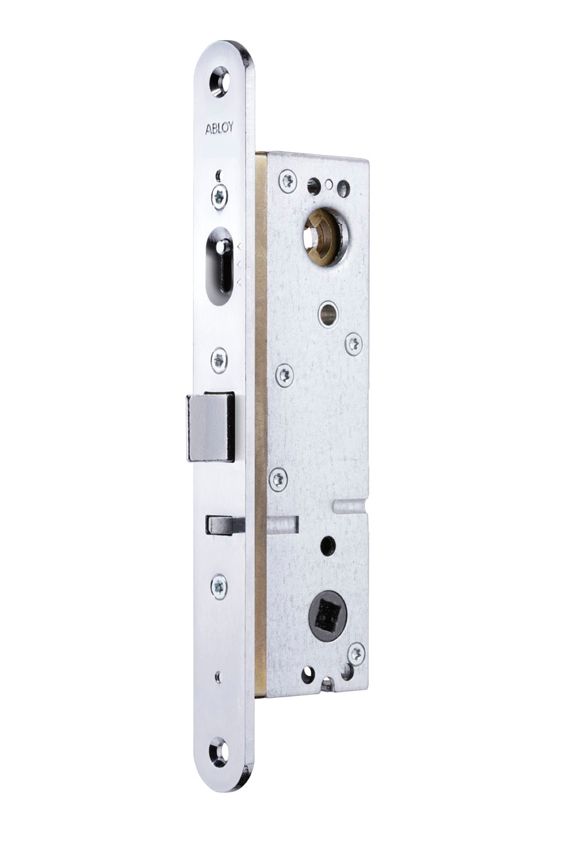

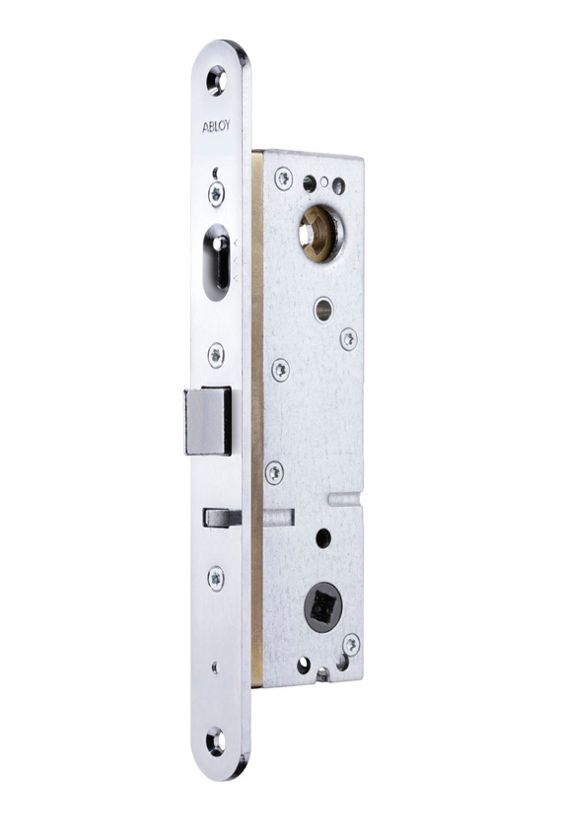

Exit lock LE315

Exit lock case with automatic deadlocking latchbolt for profile doors with one blade.

The door is opened from outside with a door pull.

The lock case fulfi ls the requirements of the European standard for exit products SFS-EN179 and SFS-EN1125 and the requirements of the lock case standard SFS-EN12209.

The lock is always opened from the inside by a lever handle, push pad or panic bar.

The latchbolt protrudes 14 mm.

Deadlocking is controlled by a snib in the front plate.

Using of the snib is normally blocked.

The snib is released by turning the key.

Snib position:

UP = Deadlocked

The lock can be opened from outside by key only and from inside by a lever handle, push pad or panic bar.

DOWN = Latchbolt is retained inside the lock case.

LE315X is the microswitch version of the lock.

The switch changes the status when latchbolt is deadlocked.

Striker plate

LP702, LP703

Finish

Fe/ZL

Cylinder

ABLOY. C, N, T, U,

Fire resistance
