Handle controlled locks are best suited in medium traffic doors. The locks can be electrically controlled by access control system or by a remote control system such as timer, keypad or push button. The locks can be used both in exit and fire rated doors. Only outside handle is electrically controlled. The lock can always be opened by inside handle. Mechanical opening by cylinder is always possible. Recommended to be used in interior doors of business premises, public buildings, hospitals, educational premises etc. Indications to EAC. Multipointlock EL466 have three locking points.
Burglary-resistant due to dead bolt with 20 mm throw and auxiliary hook bolts.
Microswitch monitoring.
Mechanical override with cylinder.
Burglary-resistant due to dead bolt with 20 mm throw and auxiliary hook bolts.
Microswitch monitoring.
Mechanical override with cylinder.
Name | Value |
---|---|
Brand | Abloy UK |
EAN code | 5011802269644 |
Range Name | Abloy UK |
Actuator | Solenoid |
Bolt Projection | 20 |
CE Certification | Ce certification en 1125:0432 CPR 00008 2, Ce certification en 12209:n a, Ce certification en 14846:0809 CPR 20002737, Ce certification en 179:0432 CPR 00008 1 |
Classification Codes | Classification codes en 1125:376B1321A B, Classification codes en 12209:N A, Classification codes en 14846:3S2C L611, Classification codes en 179:3760 B1342A B |
Finish Type | Silver |
Fire Door Approval | Yes |
Forend Style | U Shaped |
Handed | Field Changeable |
Lead In | Yes |
Length (mm) | 2000 |
Mortice Depth | 60 |
Mortice Standard | Din |
Operating Voltage | 12 24 |
REACH | Yes |
ROHS | Compliant |
SKU | EL466-45MM-2000MM |
SKU code | EL466-45MM-2000MM |
Standard | EN 1125, EN 14846, EN 179 |
Stile | Narrow |

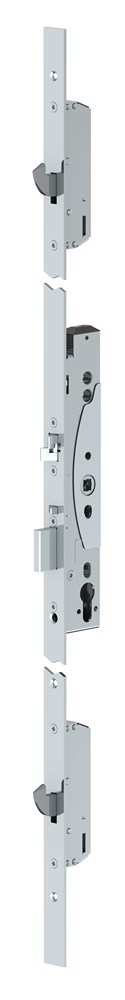

Solenoid multipoint lock for profile doors.
