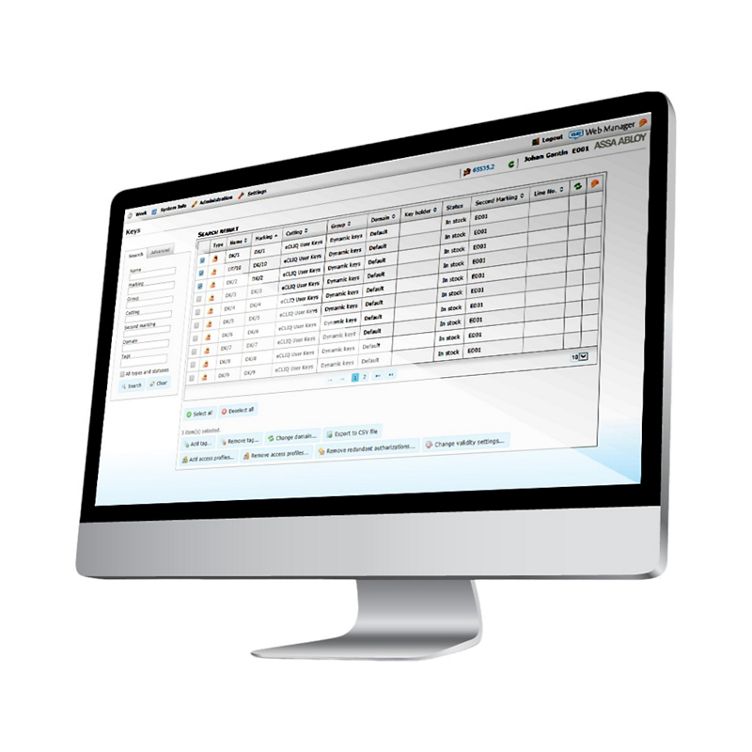

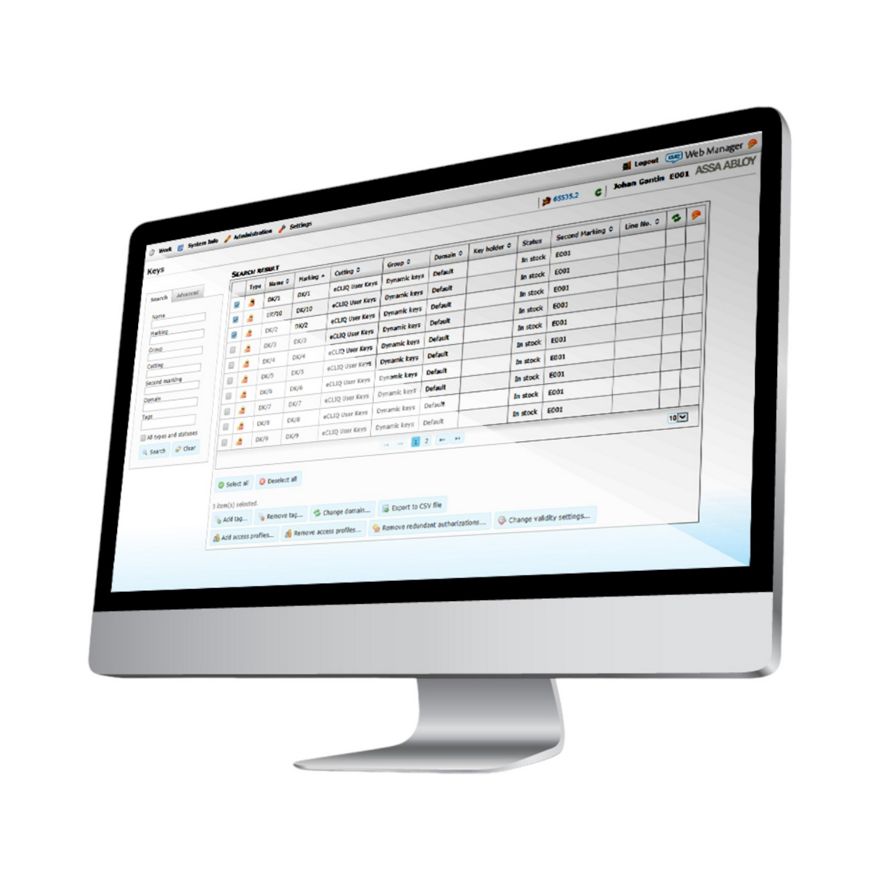

CLIQ Web Manager

An enterprise level access management software

CLIQ Web Manager is a full feature web based software for managing your Protec2 CLIQ system. CLIQ Web Manager provides easy, secure and flexible management of your CLIQ keys and cylinders.

CLIQ Web Manager is accessible via a web browser from anywhere in the world. Bulk updates and other advanced features makes changing the access rights quick and simple. The key holders can update their keys via network connected CLIQ Remote Programming devices placed on a wall or paired with a mobile phone.

Communication with CLIQ Web Manager is encrypted and a personal PIN code protected key, called C-key, as well as a certificate in the web browser is required to login.

CLIQ Web Manager with CLIQ Remote enables many of the tasks involved in the management of the CLIQ system to be done automatically. Access right changes, audit trails collection and key validity extensions are examples of such tasks. This often eliminates the need to change the access rights in the cylinders. Access rights changes are instead done in the key when the key holders update their keys.

KEY FEATURES

  • Software with comprehensive features
  • No limitation in terms of system size
  • Multiple administrators with various access rights in the software
  • Advanced features such as remote programming of keys, revalidation, domains, bulk operations and email notifications to key holders
  • Available in two versions – – SaaS hosted or in-house installation
  • Audit trails are stored in the keys as well as in the cylinders

With CLIQ Web Manager PROTEC2 CLIQ is a true one key solution where CLIQ keys are capable of operating both electromechanical and mechanical cylinders. CLIQ cylinders are installed in areas which require electronic features such as audit trails, time limited access and easy management of lost keys. Those areas could for instance be the perimeters, storerooms or server rooms while mechanical ABLOY PROTEC2 cylinders are installed in the other areas.

  • Theoretical Coding Combinations: 4.3 billion electronic codes per keying system. 280,000 mechanical codes per key profile.

    Memory structure of cylinders and keys
    Cylinder:
    1,800 authorised individual keys, key groups* and/or programming keys (C-keys) can be stored in the cylinder memory at a time. *Maximum 65.535 keys in each group.
    3,000 individual keys can be stored in a black list. Black listing of individual keys is only needed if the black listed key belongs to a key group that is programmed in the cylinder.
    2,000 audit trails.
    10 audit trails from CLIQ keys belonging to another keying system.

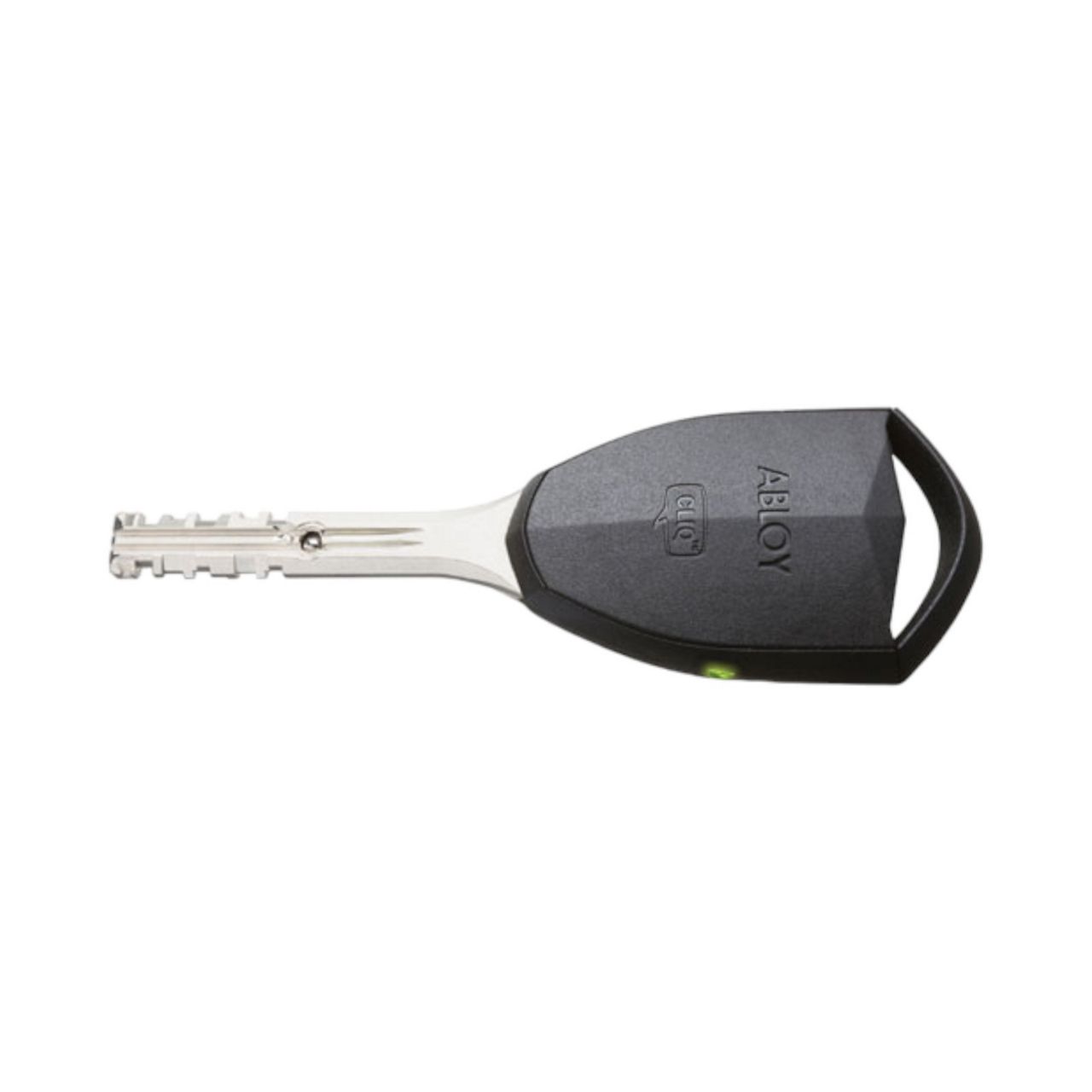

    Normal user key TQ406:
    2,000 audit trails.
    10 audit trails from CLIQ cylinders belonging to another keying system.

    Dynamic user key TQ407:
    2,000 audit trails.
    10 audit trails from CLIQ cylinders belonging to another keying system.
    3,500 authorised cylinders.

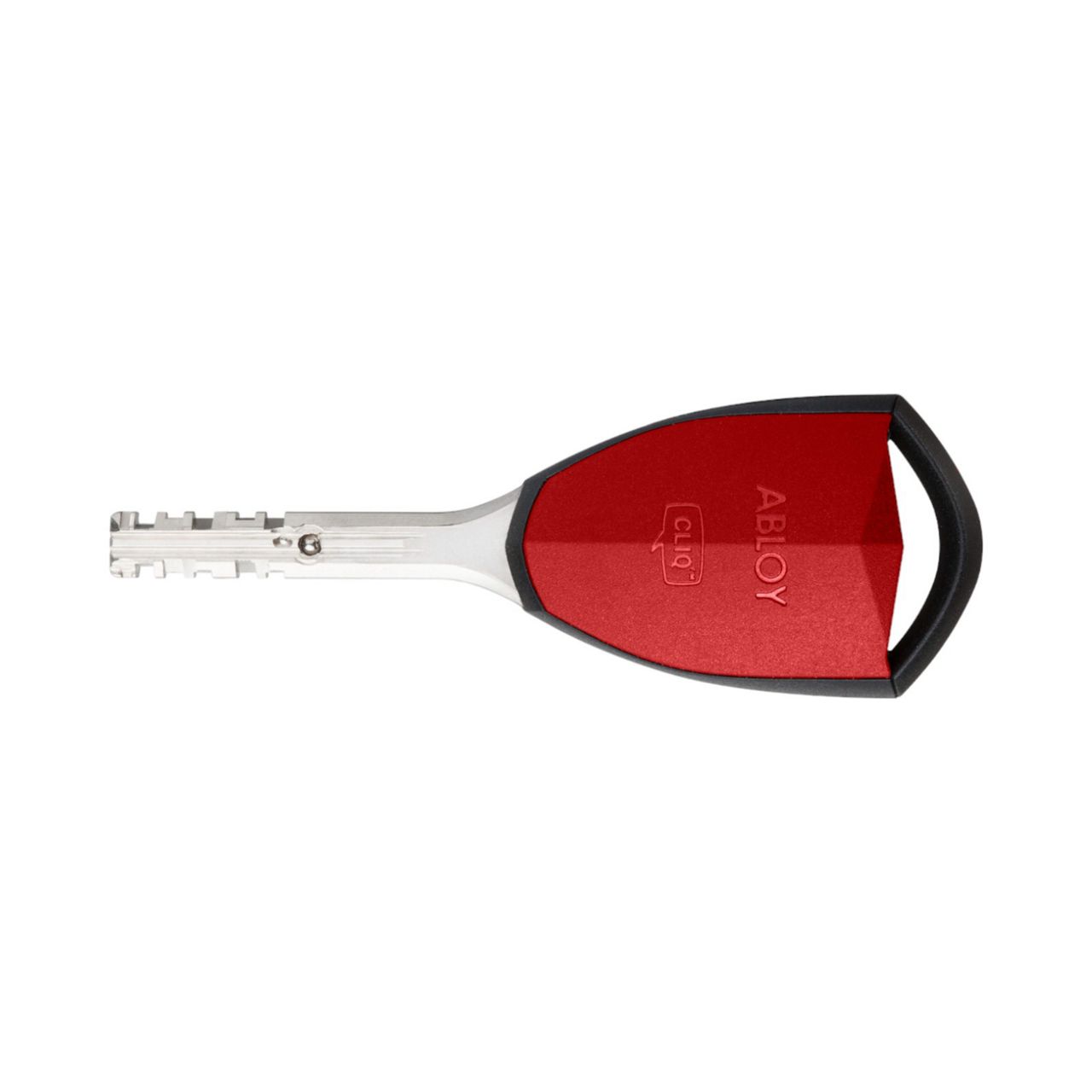

    C-key TQ403:
    770 CLIQ cylinder programming tasks can be stored on the key.
    8,000 audit trails can be read at the time.

    Master C-key TQ403M:
    770 CLIQ cylinder programming tasks can be stored on the key.
    8,000 audit trails can be read at the time.

    Normal CLIQ Connect user key TQB406:
    2,000 audit trails.
    10 audit trails from CLIQ cylinders belonging to another keying system.

    Dynamic CLIQ Connect user key TQB407:
    2,000 audit trails.
    10 audit trails from CLIQ cylinders belonging to another keying system.
    800 authorised cylinders.

    CLIQ Connect C-key TQB403:
    770 CLIQ cylinder programming tasks can be stored on the key.
    8,000 audit trails can be read at the time.

    Normal CLIQ Connect Online user key TQC406:
    2,000 audit trails.
    10 audit trails from CLIQ cylinders belonging to another keying system.

    Dynamic CLIQ Connect Online user key TQC407:
    2,000 audit trails.
    10 audit trails from CLIQ cylinders belonging to another keying system.
    800 authorised cylinders.

    Time functions
    CLIQ keys have a clock and calendar feature.
    A CLIQ key can be programmed to be; always active, active between certain dates or inactive.
    It is also possible to set a weekly operation schedule to the key. The calendar allows the administrator to specify up to 50 time periods where the key is granted access throughout the week. Cylinder specific time periods can also be programmed in the key. The key can for instance be programmed to open all cylinders Mon - Fri 8AM - 5PM except for one (or more) cylinder(s) which can only be opened on Saturdays.
    The clock has an accuracy of minimum +/- 1 minute per month.

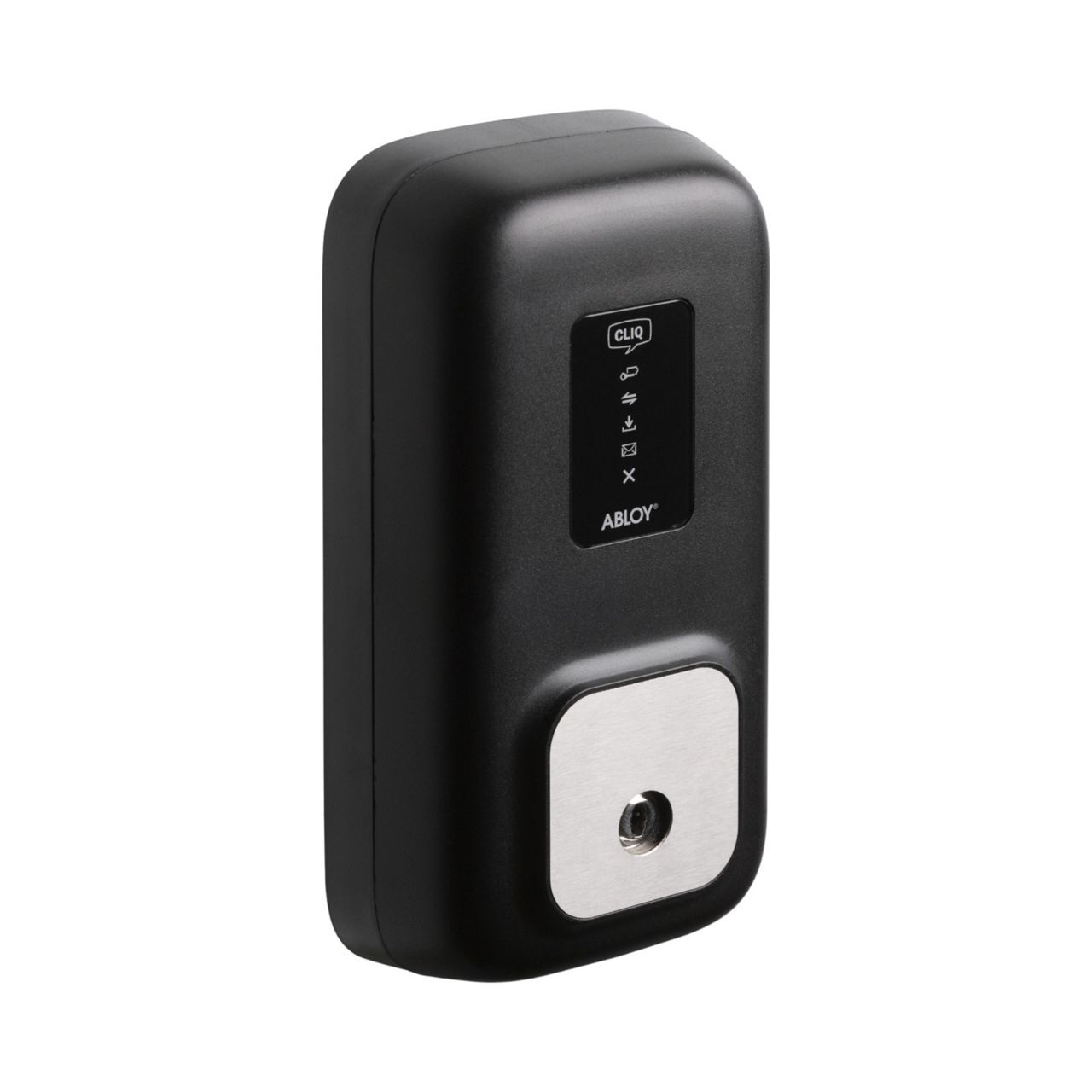

    Wall PD
    Wall PD is a remote programming device that can program CLIQ keys over an internet or LAN connection. Wall PDs are typically mounted onto a wall where the key holders easily can update their keys.
    Specifications:
    RJ45 connection to Ethernet, can be powered over Ethernet (PoE)
    Power supply: 12-24V AC or DC 2W
    Power supply PoE: 42-57 V DC referral to standard IEEE 802.3af

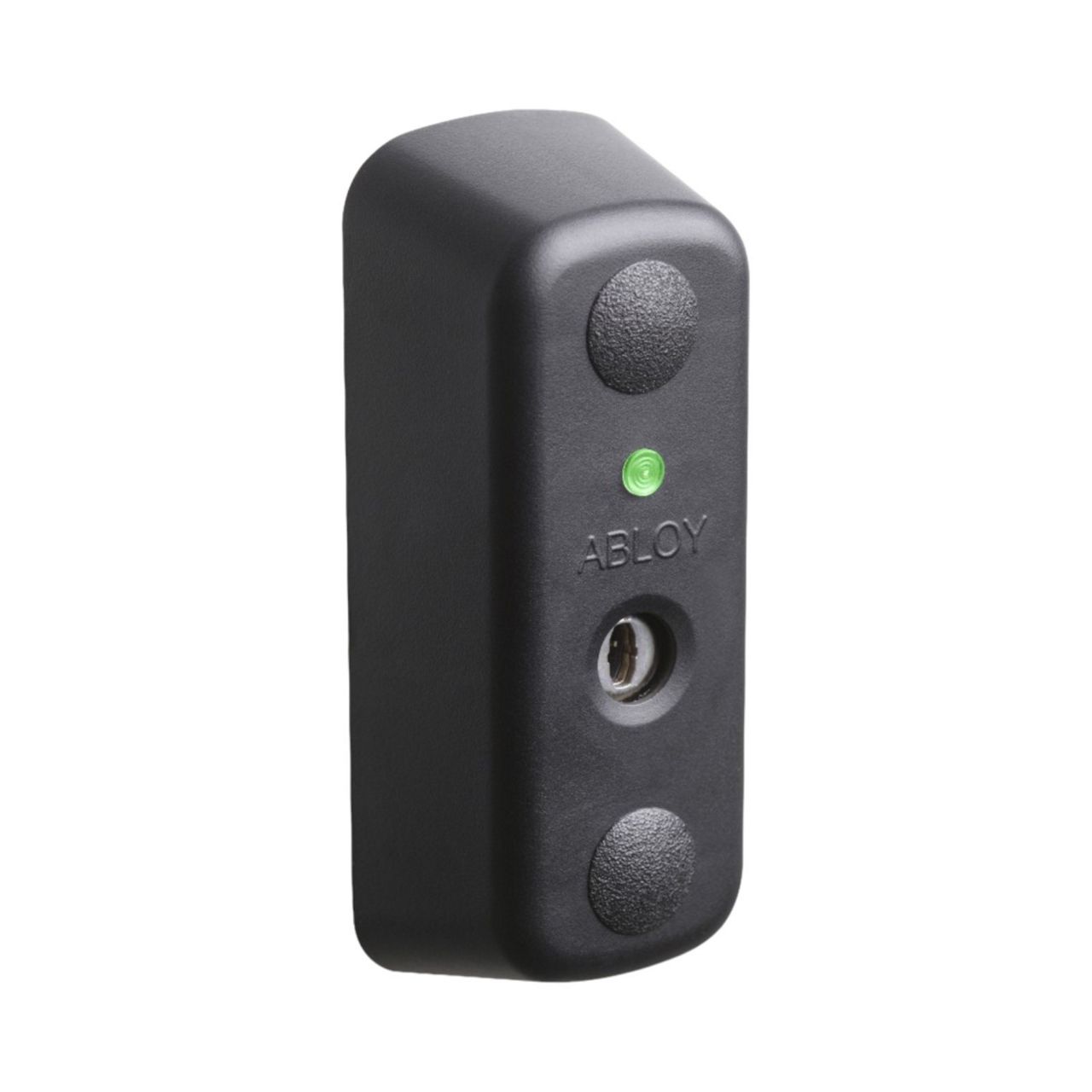

    CLIQ Reader
    CLIQ reader is a device used when controlling electrical devices like electrical lock cases, elevators etc. The operation is similar to a CLIQ cylinder except that the key is not turned. The CLIQ reader contains of two parts, an escutcheon which is the visible part and the electronics which is placed in a secure location. The parts are connected with an electrical wire.
    CLIQ Readers can also be used as an extension to a Wall PD. The CLIQ Reader can then be located outdoors while the Wall PD is located on the inside of the wall. This solution makes it possible to update CLIQ keys via a Wall PD from an outdoor location.
    Specifications:
    Power input 12-24 VDC -10 / +15%
    Power consumption 60mA
    Relay load max. 0.8A 30V AC/DC resist 20W
    Maximum length of the wire between the escutcheon and the electronics is 1 meter. The wire should be cut to the proper length. The wire cannot be extended.

    Electronic security of CLIQ keys and cylinders
    The communication between the cylinder and key is encrypted using a 128-bits AES encryption.The data stored in the keys and cylinders is also encrypted.
    All data transferred from the factory to the End User's database and further on via a programming device and a programming key (C-key) to a CLIQ cylinder or key is encrypted as well.
