ABLOY PROTEC CLIQ

Specification Statement
The Keying System should use a rotating disc technology and symmetrical key.

Technical Information

Theoretical Coding Combinations: 4.3 billion electronic codes per keying system. 280,000 mechanical codes per key profile.

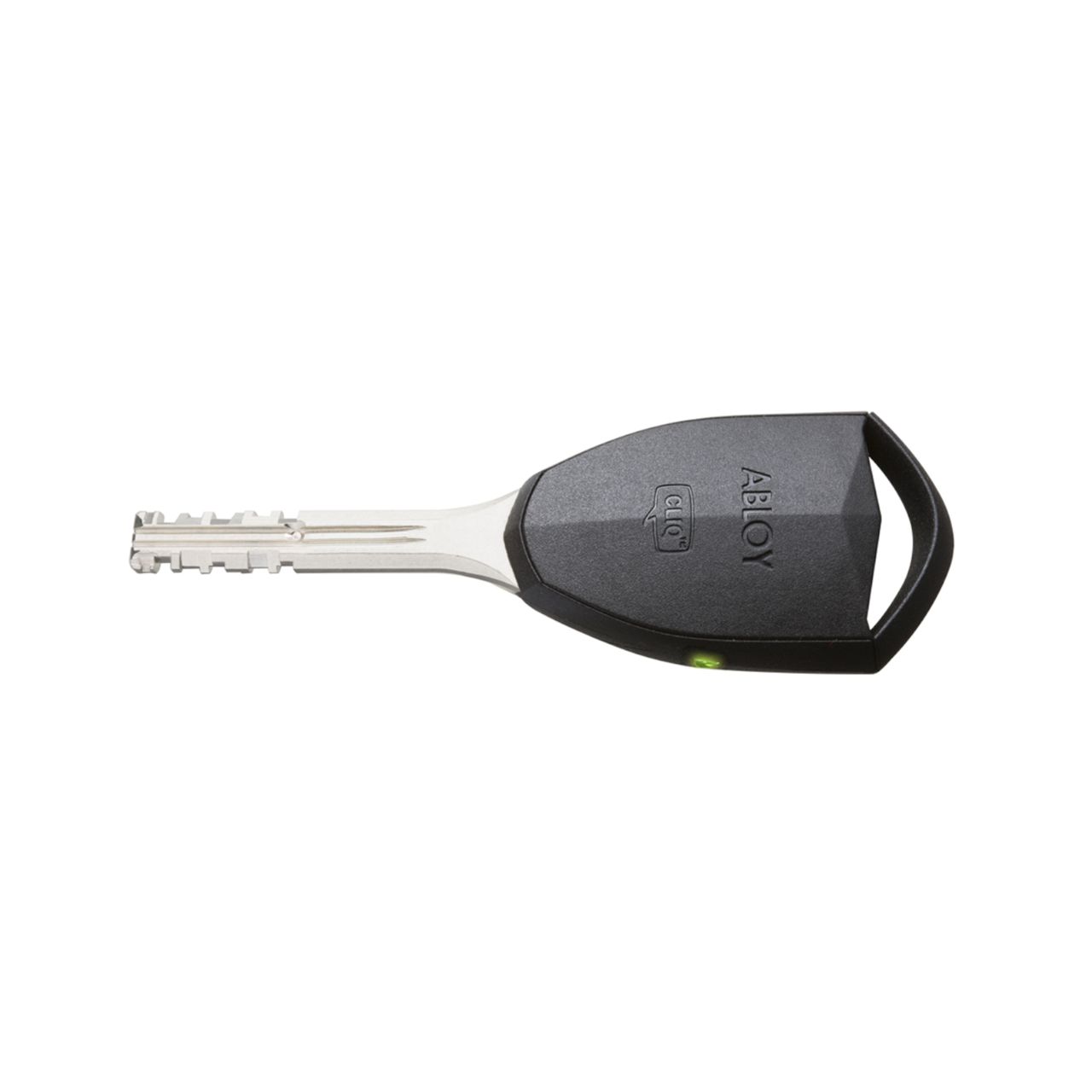

CLIQ Key Material: The key has a metal shaft and a plastic bow. The CLIQ electronics is located under the plastic cover.

Active / Passive Key: Active

Symmetrical / Asymmetrical Key: Symmetrical

Disc Quantity: 9

CLIQ Key Indications: The key electronics contains a small buzzer and a LED on both sides of the key that provide the key holder with an audible and visual access indication.

1 short beep and green light
The key is granted access

3 short beeps and red flashing light
The key is denied access

3 long beeps and flashing light
The battery may be low or cold (try warming the key in your hand)

No beep and no light
The battery is empty

CLIQ Key stampings
Key identification stampings are made on the key. One of identifications is a globally unique number.

CLIQ key battery
The battery powers the electronics in the key as well as in the cylinder.

The battery is located under a plastic cover.

Battery specifications:
3V lithium (type CR2450N).
Lifetime is about ten years or 100,000 key operations. CLIQ Connect keys will have a battery lifetime of about one year.
The battery must be replaced when the key starts to indicates low battery. It is possible to make around 50 key operations until the battery is empty once the low battery warning is given.

Speed of the electronic function

CLIQ cylinders can be operated 0.1 seconds after key insertion. A visual and audible indication is given to the key holder when the key can be turned.

Environmental restrictions for use
Use temperature: key -20°C …+70°C
Use temperature: cylinder -30°C …+70°C

Dust and water protection
Cylinder: IP classification IP 51 (= limited amount of dust can enter the cylinder, and it is protected against water drops coming directly vertically). Cylinders can be ordered with a dust cover to protect the keyway from dust and water (IP54).
Key: IP classification IP 57 (= limited amount of dust can enter the key, and it is protected against water).
Padlock (SWP): IP classification IP 68 (= dust tight and hermetically sealed).

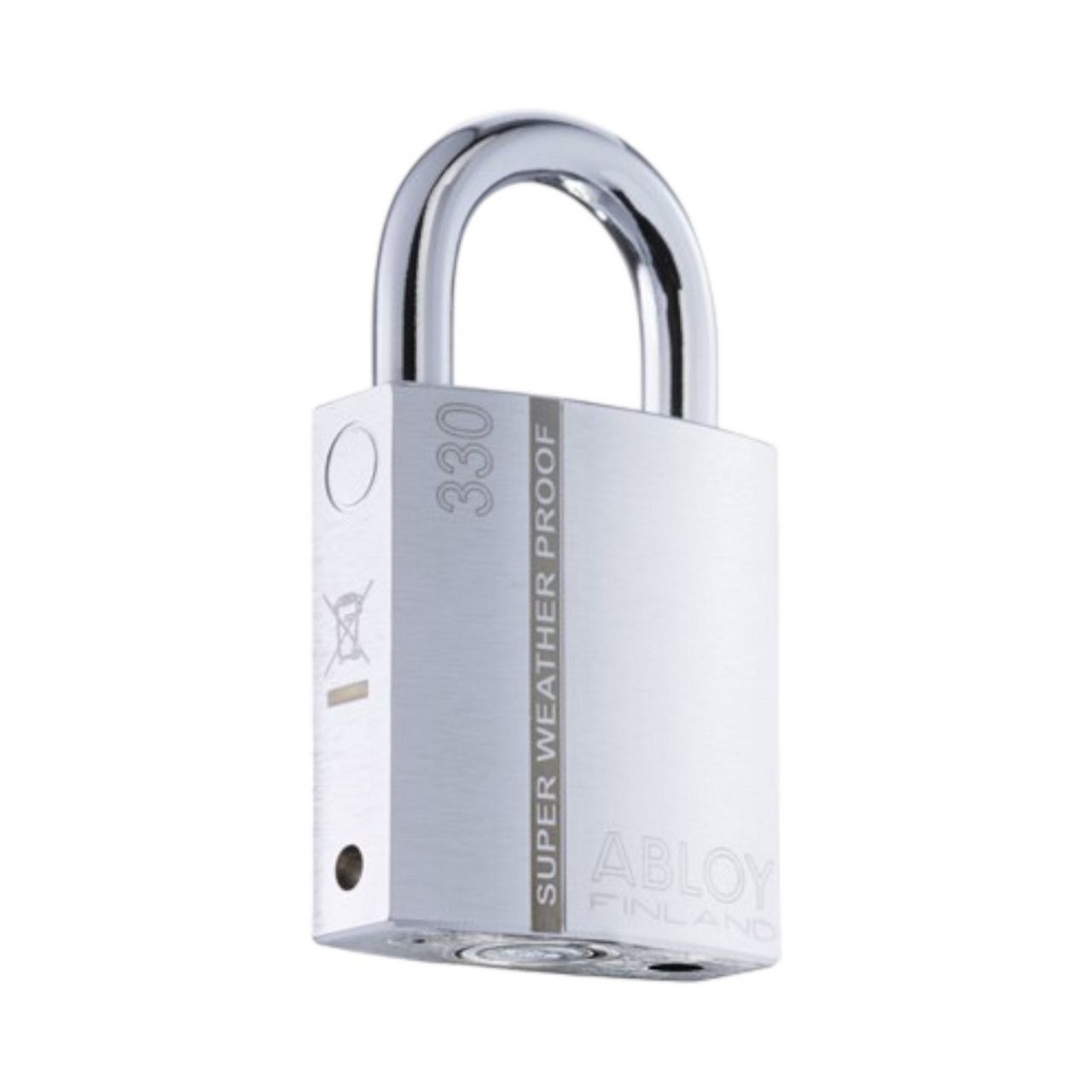

330 series padlocks are also available with an automatic dust cover to protect the keyway from dust and water (IP54).

Memory structure of cylinders and keys
Cylinder:
1,800 authorised individual keys, key groups* and/or programming keys (C-keys) can be stored in the cylinder memory at a time. *Maximum 65.535 keys in each group.
3,000 individual keys can be stored in a black list. Black listing of individual keys is only needed if the black listed key belongs to a key group that is programmed in the cylinder.
2,000 audit trails.
10 audit trails from CLIQ keys belonging to another keying system.

Normal user key NQ406:
2,000 audit trails.
10 audit trails from CLIQ cylinders belonging to another keying system.

Dynamic user key NQ407:
2,000 audit trails.
10 audit trails from CLIQ cylinders belonging to another keying system.
3,500 authorised cylinders.

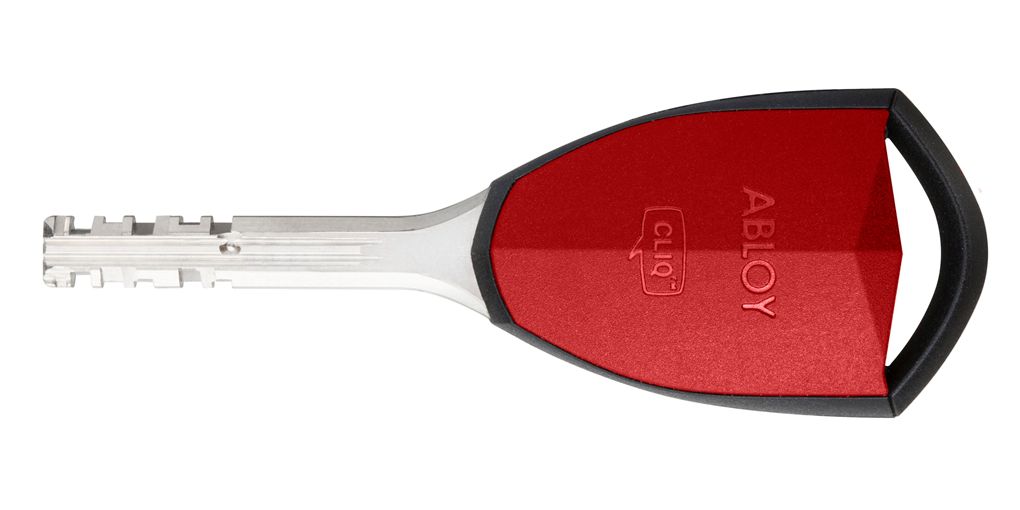

C-key NQ403:
770 CLIQ cylinder programming tasks can be stored on the key.
8,000 audit trails can be read at the time.

Master C-key NQ403M:
770 CLIQ cylinder programming tasks can be stored on the key.
8,000 audit trails can be read at the time.

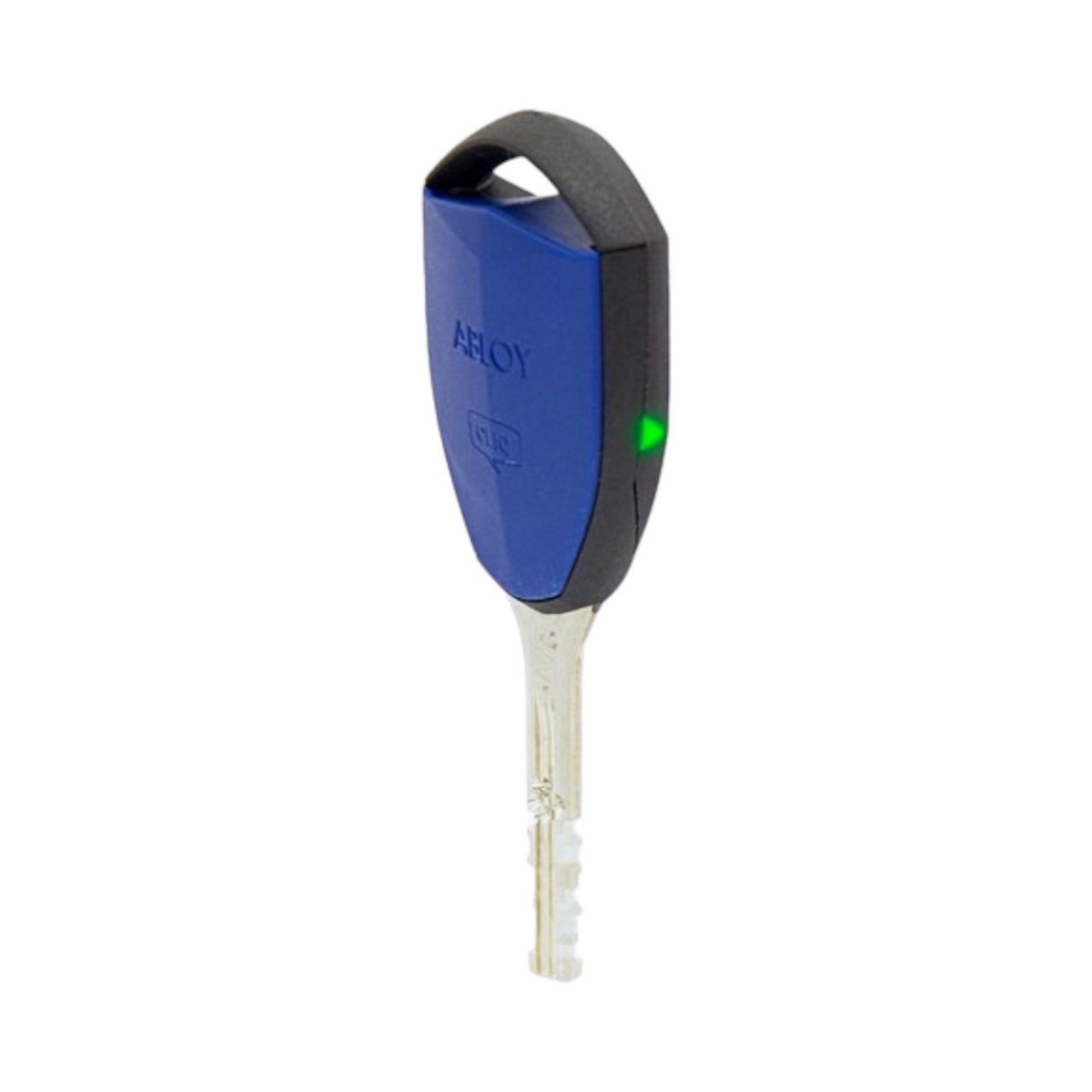

Normal CLIQ Connect user key NQB406:
2,000 audit trails.
10 audit trails from CLIQ cylinders belonging to another keying system.

Dynamic CLIQ Connect user key NQB407:
2,000 audit trails.
10 audit trails from CLIQ cylinders belonging to another keying system.
800 authorised cylinders.

CLIQ Connect C-key NQB403:
770 CLIQ cylinder programming tasks can be stored on the key.
8,000 audit trails can be read at the time.

Normal CLIQ Connect Online user key NQC406:
2,000 audit trails.
10 audit trails from CLIQ cylinders belonging to another keying system.

Dynamic CLIQ Connect Online user key NQC407:
2,000 audit trails.
10 audit trails from CLIQ cylinders belonging to another keying system.
800 authorised cylinders.

Time functions
CLIQ keys have a clock and calendar feature.
A CLIQ key can be programmed to be; always active, active between certain dates or inactive.
It is also possible to set a weekly operation schedule to the key. The calendar allows the administrator to specify up to 50 time periods where the key is granted access throughout the week. Cylinder specific time periods can also be programmed in the key. The key can for instance be programmed to open all cylinders Mon - Fri 8AM - 5PM except for one (or more) cylinder(s) which can only be opened on Saturdays.
The clock has an accuracy of minimum +/- 1 minute per month.

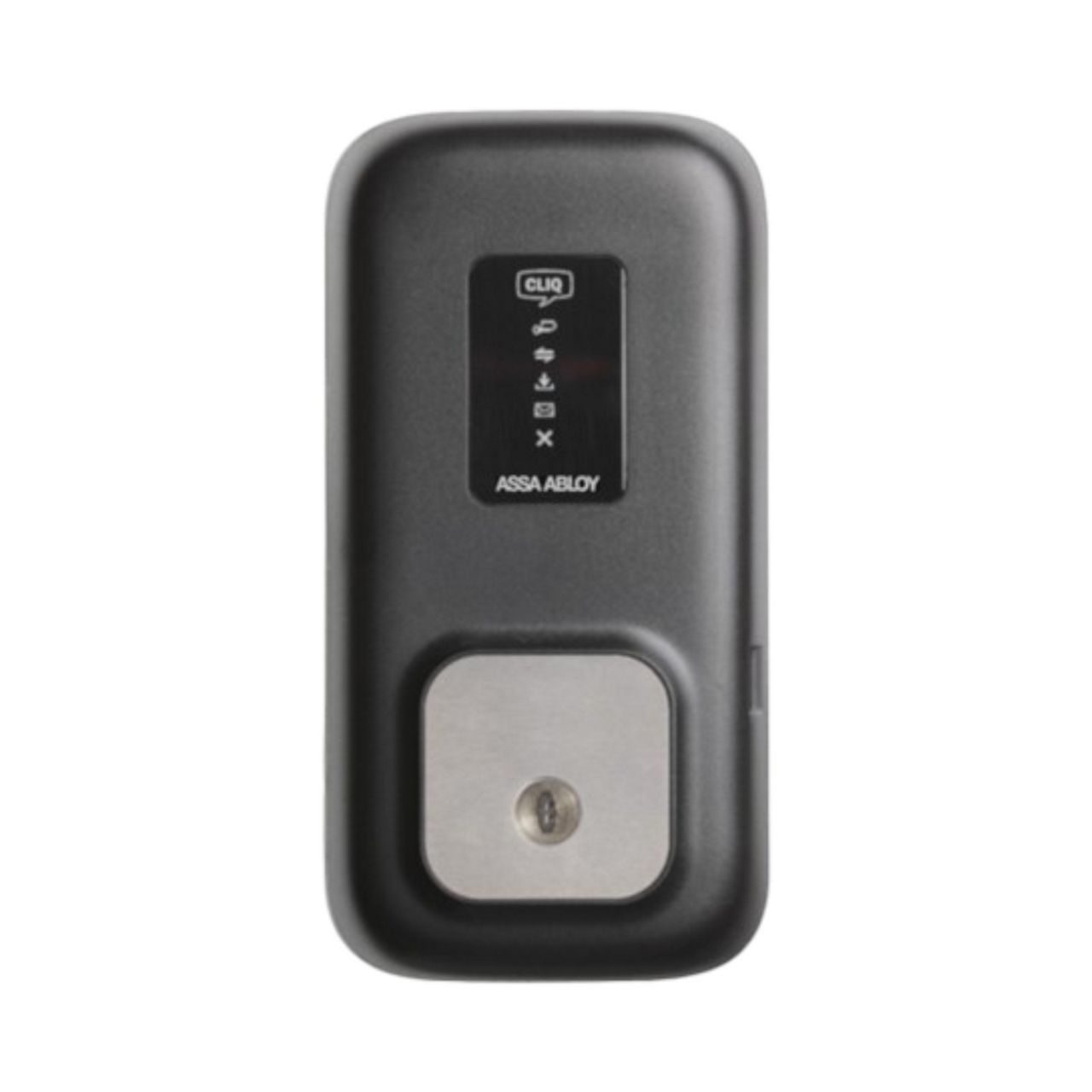

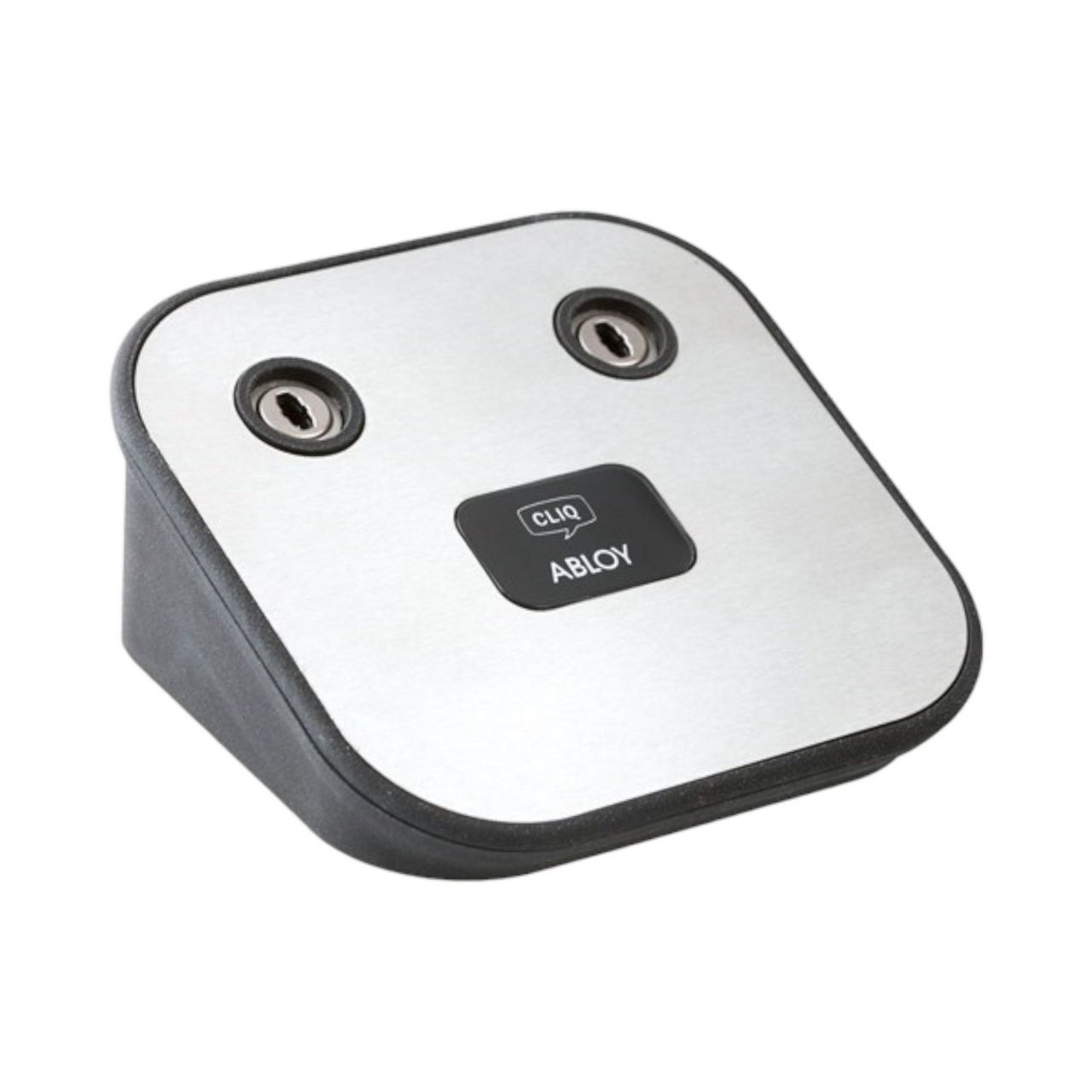

Wall PD
Wall PD is a remote programming device that can program CLIQ keys over an Internet or LAN connection. Wall PDs are typically mounted onto a wall where the key holders easily can update their keys.
Specifications:
RJ45 connection to Ethernet, can be powered over Ethernet (PoE)
Power supply: 12-24V AC or DC 2W
Power supply PoE: 42-57 V DC referral to standard IEEE 802.3af

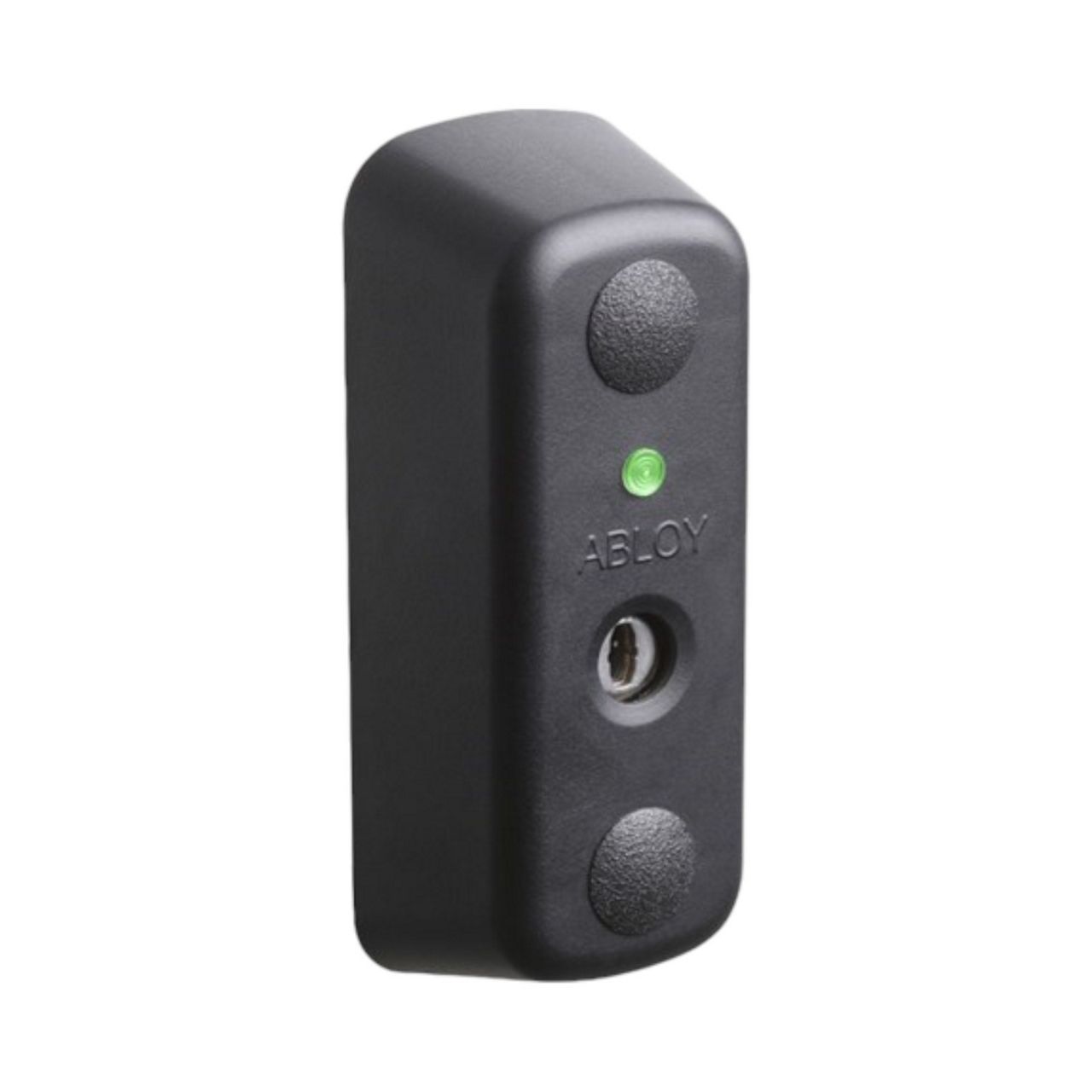

CLIQ Reader
CLIQ reader is a device used when controlling electrical devices like electrical lock cases, elevators etc. The operation is similar to a CLIQ cylinder except that the key is not turned. The CLIQ reader contains of two parts, an escutcheon which is the visible part and the electronics which is placed in a secure location. The parts are connected with an electrical wire.
CLIQ Readers can also be used as an extension to a Wall PD. The CLIQ Reader can then be located outdoors while the Wall PD is located on the inside of the wall. This solution makes it possible to update CLIQ keys via a Wall PD from an outdoor location.
Specifications:
Power input 12-24 VDC -10 / +15%
Power consumption 60mA
Relay load max. 0.8A 30V AC/DC resist 20W
Maximum length of the wire between the escutcheon and the electronics is 1 meter. The wire should be cut to the proper length. The wire cannot be extended.
